DS230RB Wireless Bluetooth 2d barCode Scanner with Charging cradle QR code Reader
wireless barcode scanner durable and high-performance 1D/2D . Equipped with charging base, this scanner effortlessly captures high-density, high-volume, and distorted barcodes printed on paper or displayed on screen.


| Performance Parameters | |||||||
| Light Sources | 617nm LED Aimer, White LED | ||||||
| Supported Symbologies |

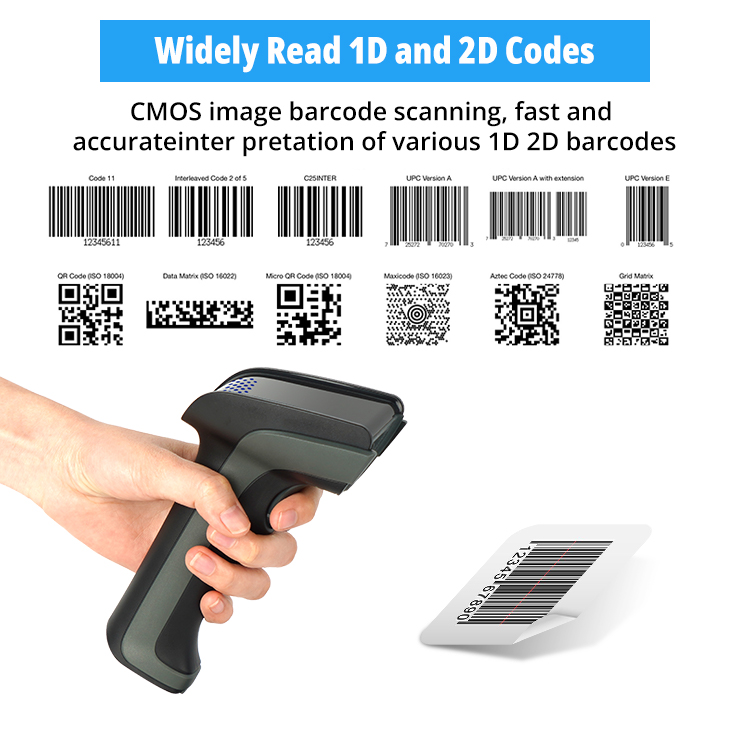

1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese |
||||||
| Scan Type | Image CMOS | ||||||
| Resolution | 1280*1024 | ||||||
| Scan Method | Manual/Continuous/Automatic scanning | ||||||
| Scan angle | Yaw 60°,Rotation 360°,Pitch 60° | ||||||
| Precision | ≥4mil | ||||||
| Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) | ||||||
| Error Rate | Less than 1/5million | ||||||
| Interface | USB-HID, USB-COM, RS232 | ||||||
| Physical Parameters | |||||||
| Dimensions | 102mm*71mm*171mm | ||||||
| Weight | 250g | ||||||
| Material | ABS+PC | ||||||
| Cable Length | 2m | ||||||
| Environmental Parameters | |||||||
| Operating Temperature | -20℃ ~ 50℃ | ||||||
| Storage Temperature | -40℃ ~ 70℃ | ||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
| Ambient lighting | 0~100000LUX | ||||||
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | ||||||
| Electrical Parameters | |||||||
| Working Voltage | DC5V±5% | ||||||
| Operating Current | 120mA |
||||||
